LPB3568 Embedded Industrial Computer Box PC RK3568 with HDMI Input Interface

LPB3568 Smart Host: Industrial-Grade Performance with Efficient Thermal Design

The LPB3568 Industrial Computer Box PC, powered by Rockchip’s RK3568 platform, is a high-performance industrial computing solution designed for edge computing, AI applications, and industrial automation. Its all-aluminum, fanless chassis is engineered for durability, ensuring efficient heat dissipation by transferring heat from critical components like the CPU and PMU to the external shell. This rugged and reliable design enables the LPB3568 to perform optimally in harsh industrial environments, making it ideal for a wide range of demanding applications.

Product Description:

Technical Parameters:

Function	Description
CPU	RK3568, 22 nm, quad-core Cortex-A55, up to 2.0GHZ
GPU	ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D Graphics Engine
NPU	10 TOPS, INT8/INT16/FP16/BFP16 MAC hybrid operation supported
VPU	4K VP9 and 4K H265 up to 60fps video decoding1080P up to 100fps H265/ H264 video encoding8M ISP with HDR
DDR	LPDDR4, 1GB/2GB/4GB/8GB(Optional)
eMMC	eMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional)
PMU	RK809
Network	2 x 10/100/1000Mbps Ethernet; Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac/ax; BT V5.0 with BLE supported 2G/3G/4G/5G modules supported (optional)
Storage	MicroSD (TF) Card Compatible with SDIO3.0
OS	Android / Buildroot / Debian / Ubuntu

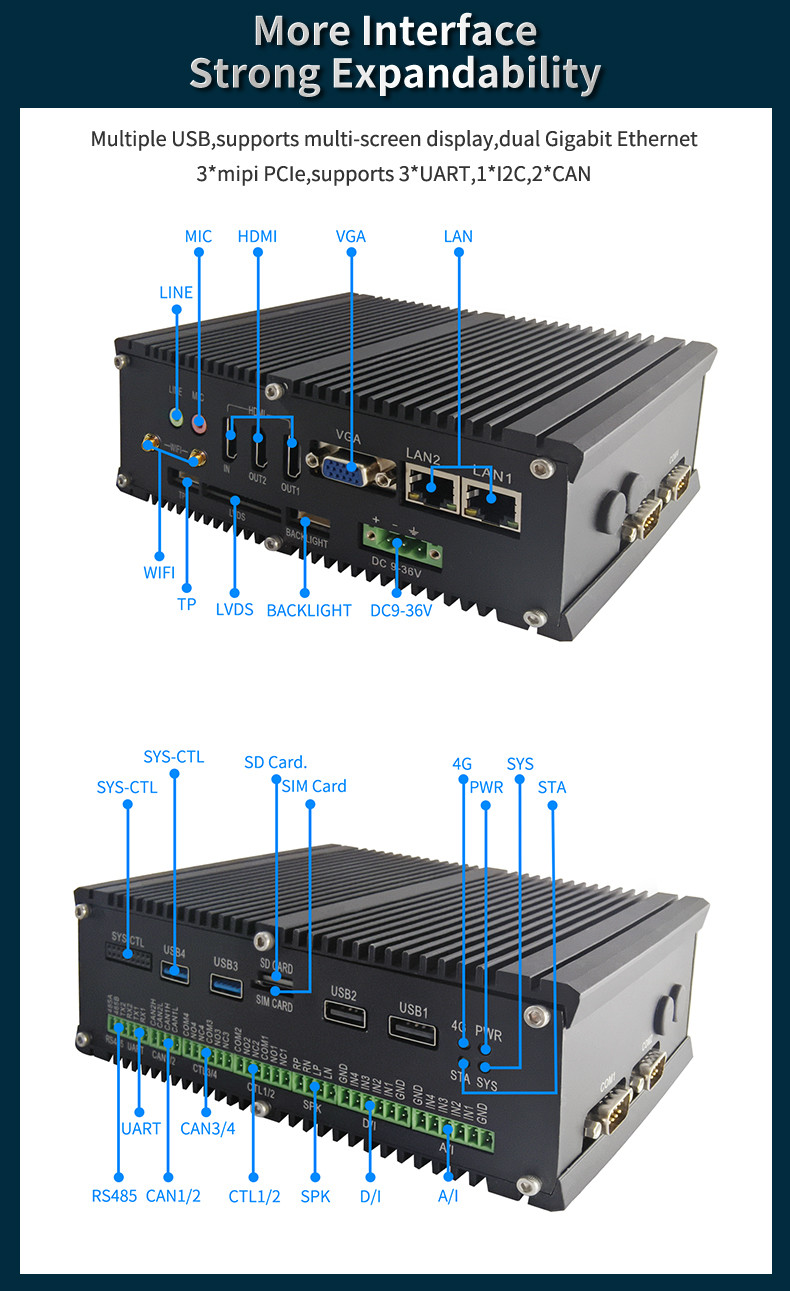

Hardware Interface
Power input	DC 9V - 36V
USB	1 x Type-A USB3.0 HOST, 1 x Type-A USB3.0 OTG, 2 x Type-A USB2.0 HOST
Display output	2x Type-A HDMI 2.0, 1x VGA, 1x Duel channel LVDS
Audio	1x φ3.5mm audio out, 1xφ3.5mm microphone, 2x Speaker output with 10W@8Ω
Display input	HDMI Input interface
PCIe	1x mini PCIe for 2G/3G/4G/5G LTE module, 2 x mini PCIe for AI cards
M.2	M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported
SD card	Compatible with SDIO 3.0 protocol, system boot up supported
SIM card	Micro sim slot for Mini-PCIe 4G LTE module
RJ-45	2 x 10/100/1000 Ethernet
Connectivity	2x Uart, 2x CAN BUS, 4x RS232, 1 x RS485
Input/output	4x Relays, 4x digital input, 4x analog input
Size	LxWxH(mm): 182x120x63

Support and Services:

Our Embedded Computer product comes with comprehensive technical support and services to ensure smooth integration and operation of the system. Our experienced technical team provides assistance in software and hardware integration, system configuration, and troubleshooting to ensure maximum uptime and productivity. We also offer customization services to tailor the system to specific requirements and ensure seamless integration with existing infrastructure. Our maintenance and repair services ensure quick and efficient resolution of any issues, minimizing downtime and ensuring continued performance. Additionally, we offer training and education services to equip customers with the knowledge and skills necessary to operate and maintain the system effectively.

Packing and Shipping:

Product Packaging:

• Embedded computer
• Power cord
• Mounting brackets
• User manual

Shipping:

• Shipped via FedEx
• Tracking number provided
• Expected delivery date: 3-5 business days
