    RK3588 Mini Industrial Fanless Vehicle Embedded PC Systems LPA3588 OEM

    Ask Lasest Price
    Model Number : LPA3588
    Brand Name : Neardi
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000/pieces/mon
    Delivery Time : 7 days
    • Product Details
    • Company Profile

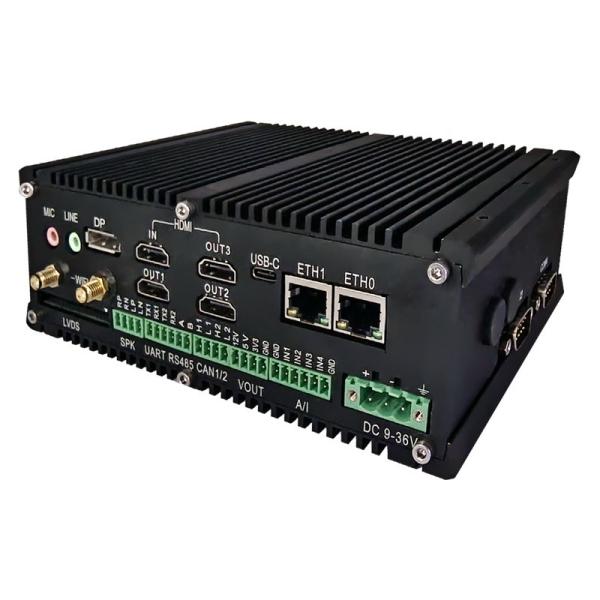

    RK3588 Mini Industrial Fanless Vehicle Embedded PC Systems LPA3588 OEM

    Neardi RK3588 OEM Fanless Embedded Pc Systems Vehicle Embedded Pc LPA3588
    The LPA3588 smart computer is carefully designed based on the Rockchip RK3588 chip. The body is made of all-aluminum material, fanless design, and innovative internal structure combination, so that the key heat-generating components such as the CPU and PMU can be efficiently heat-conducted to the external aluminum shell, and the entire body shell is used as a heat dissipation material. This design allows the LPA3588 to perform well in more stringent working environments and enables it to be widely used in various industrial scenarios.

    Product Parameters


    Function
    Description
    SOC
    RK3588, 8nm, 4*A76+4*A55
    GPU
    ARM Mali-G610 MC4;OpenGL ES 1.1/2.0/3.1/3.2;Vulkan 1.1/1.2
    OpenCL 1.1/1.23/2.0;
    NPU
    6 TOPS, int4/int8/int16/FP16/BF16/TF32
    VPU
    Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS
    Encode: H.264/H.265, 8K30FPS
    DDR
    LPDDR4, 4GB/8GB/16GB
    eMMC
    eMMC 5.1, 32GB/64GB/128GB
    PMU
    RK806
    OSAndroid / Buildroot / Debian / Ubuntu

    Hardware Interface
    Power input
    DC 9V - 36V
    USB
    3*Type-A USB3.0 HOST,
    1*Type-c USB3.1 OTG
    3*Type-A HDMI 2.0,
    Display output
    1*DP,
    1*Duel channel LVDS
    Audio
    1*φ3.5mm audio out,
    1*φ3.5mm microphone,
    2*Speaker output with 10W@8Ω
    Video input
    1*HDMI2.0 Input,
    8*AHD input up to 1920*1080@30fps per channel
    PCIe
    1*mini PCIe for 2G/3G/4G/5G LTE module,
    1*mini PCIe for AI cards (optional)
    M.2
    M.2 NGFF ( M-KEY ) PCIE V2.1 *4 with NVMe SSD supported
    SATA1*SATA3.0
    SD card
    Compatible with SDIO 3.0 protocol, system boot up supported
    SIM cardMicro sim slot for Mini-PCIe 4G LTE module
    RJ-45
    2*10/100/1000 Ethernet
    Connectivity
    2*Uart, 2*CANBUS, 4*RS232, 1*RS485

    RK3588 Mini Industrial Fanless Vehicle Embedded PC Systems LPA3588 OEM
    Developer's Must-Read!
    Welcome to our Resource Center, where you can find various helpful links and information for developers.
    Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
    Company Introduction
    Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.

    After-sale Service Policy

    1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
    2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
    3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
    4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
    5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
    6. Neardi will reject items sent back without our permission.
    7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
    Non-warranty Coverage(Paid Maintenance Service):
    1. Products out of warranty period;
    2. Non-warranty components including CPU, RAM, and Flash chips;
    3. Failure caused by improper operations like PCB short circuit, rupture;
    4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
    5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
    6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
    7. Product failure caused by force majeure.
    8. Other failures caused during delivery.
