Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board

Shanghai Neardi Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board from wholesalers

    Buy cheap Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board from wholesalers
    • Buy cheap Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board from wholesalers
    • Buy cheap Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board from wholesalers
    • Buy cheap Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board from wholesalers

    Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board

    Ask Lasest Price
    Model Number : LPB3568
    Brand Name : Neardi
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000/pieces/mon
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board

    Neardi LPB3568 RK3568 Embedded Computer With RK3568 Processor And Bare Board Type
    The LPB3568 smart host is a smart host carefully designed based on Rockchip's RK3568 chip platform. The fuselage adopts an all-aluminum material fanless design. The innovative structural combination inside the fuselage allows the key CPU PMU and other major heating devices to be directly connected. The heat is conducted to the external aluminum shell so that the entire body shell acts as a heat dissipation material, which can withstand more severe working environments and is widely used in a variety of industrial scenarios.

    Product Parameters


    FunctionDescription
    CPURK3568, 22 nm, quad-core Cortex-A55, up to 2.0GHZ
    GPUARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D Graphics Engine
    NPU10 TOPS, INT8/INT16/FP16/BFP16 MAC hybrid operation supported
    VPU4K VP9 and 4K H265 up to 60fps video decoding1080P up to 100fps H265/H264 video encoding8M ISP with HDR
    DDRLPDDR4, 1GB/2GB/4GB/8GB(Optional)
    eMMCeMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional)
    PMURK809
    Network2 x 10/100/1000Mbps Ethernet;
    Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac/ax;
    BT V5.0 with BLE supported
    2G/3G/4G/5G modules supported (optional)
    StorageMicroSD (TF) Card Compatible with SDIO3.0
    OSAndroid / Buildroot / Debian / Ubuntu

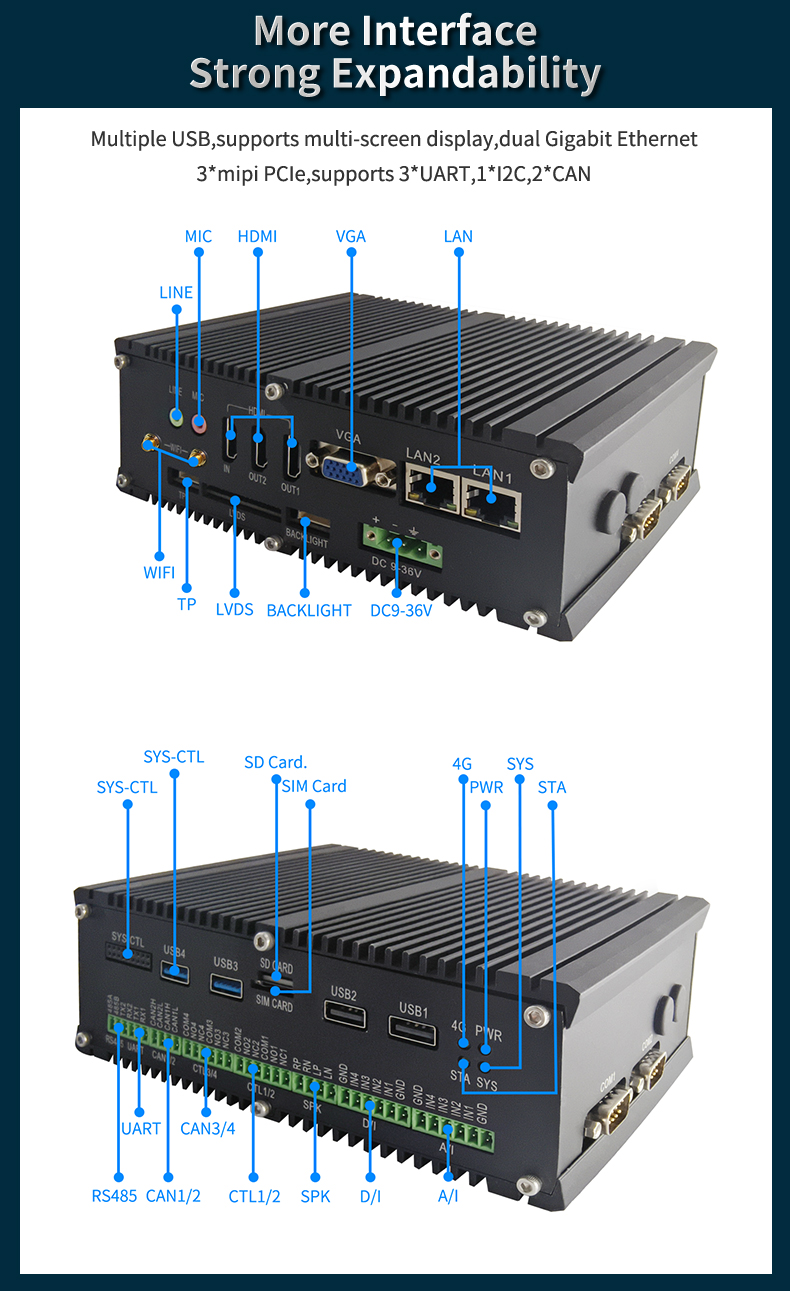

    Hardware Interface
    Power inputDC 9V - 36V
    USB1 x Type-A USB3.0 HOST, 1 x Type-A USB3.0 OTG, 2 x Type-A USB2.0 HOST
    Display output2x Type-A HDMI 2.0, 1x VGA, 1x Duel channel LVDS
    Audio1x φ3.5mm audio out, 1xφ3.5mm microphone, 2x Speaker output with 10W@8Ω
    Display inputHDMI Input interface
    PCIe1x mini PCIe for 2G/3G/4G/5G LTE module, 2 x mini PCIe for AI cards
    M.2M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported
    SD cardCompatible with SDIO 3.0 protocol, system boot up supported
    SIM cardMicro sim slot for Mini-PCIe 4G LTE module
    RJ-452 x 10/100/1000 Ethernet
    Connectivity2x Uart, 2x CAN BUS, 4x RS232, 1 x RS485
    Input/output4x Relays, 4x digital input, 4x analog input
    SizeLxWxH(mm): 182x120x63

    Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board
    Neardi LPB3568 fanless Industrial Embedded Computer box With RK3568 Processor Bare Board
    Developer's Must-Read!
    Welcome to our Resource Center, where you can find various helpful links and information for developers.
    Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.

    Company Introduction
    Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.


    After-sale Service Policy

    1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
    2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
    3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
    4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
    5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
    6. Neardi will reject items sent back without our permission.
    7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
    Non-warranty Coverage(Paid Maintenance Service):
    1. Products out of warranty period;
    2. Non-warranty components including CPU, RAM, and Flash chips;
    3. Failure caused by improper operations like PCB short circuit, rupture;
    4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
    5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
    6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
    7. Product failure caused by force majeure.
    8. Other failures caused during delivery.
