    Neardi LPA3588 RK3588 Embedded Computer 32GB/64GB/128GB Android/Buildroot/Debian/Ubuntu

    Neardi LPA3588 RK3588 Embedded Computer 32GB/64GB/128GB Android/Buildroot/Debian/Ubuntu

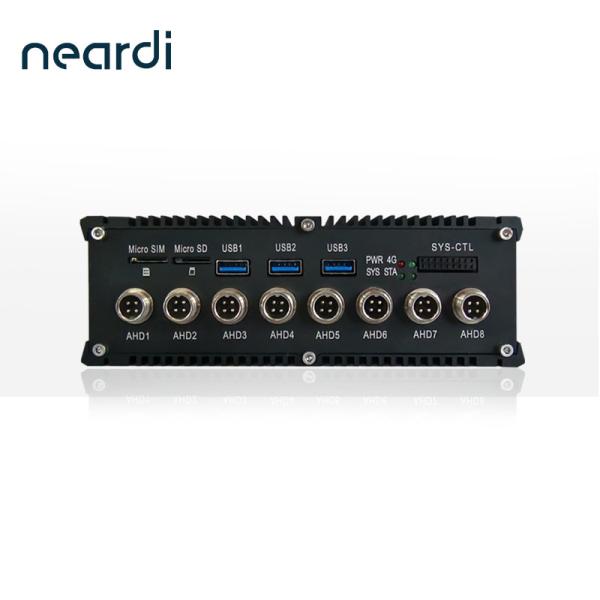

    The LPA3588 intelligent computer, meticulously crafted on the Rockchip RK3588 chip platform, features a full aluminum, fanless design. Its innovative internal structure efficiently transfers heat from key components such as the CPU and PMU to the external casing, ensuring optimal performance in demanding environments. This design makes it suitable for a wide range of industrial applications.

    The LPA3588 includes 3 USB 3.0 HOST ports and a full-function Type-C interface, allowing the connection of multiple USB cameras. It has 2 onboard mini-PCIe interfaces for expanding with 4G/5G modules or NPU computing cards based on the RK1808, forming a sophisticated AI vision computer when used with multiple cameras.


    Supporting dual-band WIFI 6, BT5.0, 2 Gigabit Ethernet ports, CANBUS, RS485, and other communication module interfaces, the LPA3588 offers extensive connectivity options. It features 3 HDMI outputs, 1 HDMI input, audio input and output, a DP interface output, a dual-channel LVDS interface, backlight control, and a touch screen interface. The built-in M.2 NVMe 2280 SSD interface connects to various display interfaces and supports multi-screen independent displays. It can connect 8 AHD cameras simultaneously, each supporting 1920*1080@30Hz video input, using reliable GX12 aviation connectors, making it ideal for applications like panoramic stitching and ADAS vehicle intelligent terminals.


    The LPA3588 supports operating systems including Android, Buildroot, Debian, and Ubuntu, offering high performance, reliability, and scalability. The open system source code enables secondary development and customization. Our company provides comprehensive technical support to assist developers and enterprise users in efficiently completing R&D, significantly reducing the time to market for their products.


    Product Parameters


    FunctionDescription
    CPURK3588 8nm; 8-core 64-bit processor architecture (4A76 + 4A55).
    GPU

    ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2;
    OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.

    NPU6TOPS computing power / 3-core architecture; Supports
    int4/int8/int16/FP16/BF16/TF32
    VPU

    Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS;
    Supports H.264/H.265 video encoding, up to 8K30FPS.

    DDRLPDDR4, with options for 4GB/8GB/16GB.
    eMMCeMMC 5.1, with options for 32GB/64GB/128GB.
    PMURK806
    OSAndroid / Buildroot / Debian / Ubuntu

    Hardware Interface
    Power inputDC 9V - 36V,Default to 24V power supply input
    USB3*Type-A USB3.0 HOST, 1*Type-c USB3.1 OTG
    Display output3*Type-A HDMI 2.0, 1*DP, 1*Duel channel LVDS
    Audio1*φ3.5mm audio out, 1*φ3.5mm microphone, 2*Speaker output with 10W@8Ω
    Video input1*HDMI2.0 Input, 8*AHD input up to 1920*1080@30fps per channel
    PCIe1*mini PCIe for 2G/3G/4G/5G LTE module, 1*mini PCIe for AI cards (optional)
    M.2M.2 NGFF ( M-KEY ) PCIE V2.1 *4 with NVMe SSD supported
    SATA1*SATA3.0
    SD cardCompatible with SDIO 3.0 protocol, system boot-up supported
    SIM cardMicro sim slot for Mini-PCIe 4G LTE module
    RJ-452 x 10/100/1000 Ethernet
    Connectivity2x Uart, 2x CAN BUS, 4x RS232, 1 x RS485
    SizeL*W*H(mm) 182*120*63
    Operating Temperature-10 ~ 70℃
    Weight Approximately1138 g (excluding peripherals)

    Neardi LPA3588 RK3588 Embedded Computer 32GB/64GB/128GB Android/Buildroot/Debian/UbuntuNeardi LPA3588 RK3588 Embedded Computer 32GB/64GB/128GB Android/Buildroot/Debian/Ubuntu
    Developer's Must-Read!
    Welcome to our Resource Center, where you can find various helpful links and information for developers.
    Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
