    Neardi RK3568 Linux Development Board LKD3568 High Performance Single Board Computer

    Ask Lasest Price
    Brand Name : Neardi
    Model Number : LKD3568
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000/pieces/mon
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Neardi RK3568 Linux Development Board LKD3568 High Performance Single Board Computer

    Neardi RK3568 Linux Development Board LKD3568 High-Performance Single Board Computer

    The LKD3568 is a multifunctional industry application board exquisitely designed based on the Rockchip RK3568 chip platform, consisting of our company's LCB3568 core module and baseboard. The core module is connected to the baseboard using a B2B connector and secured with four M2 screws, ensuring stability and reliability. The board is versatile and rich in interfaces, suitable for a wide range of applications.

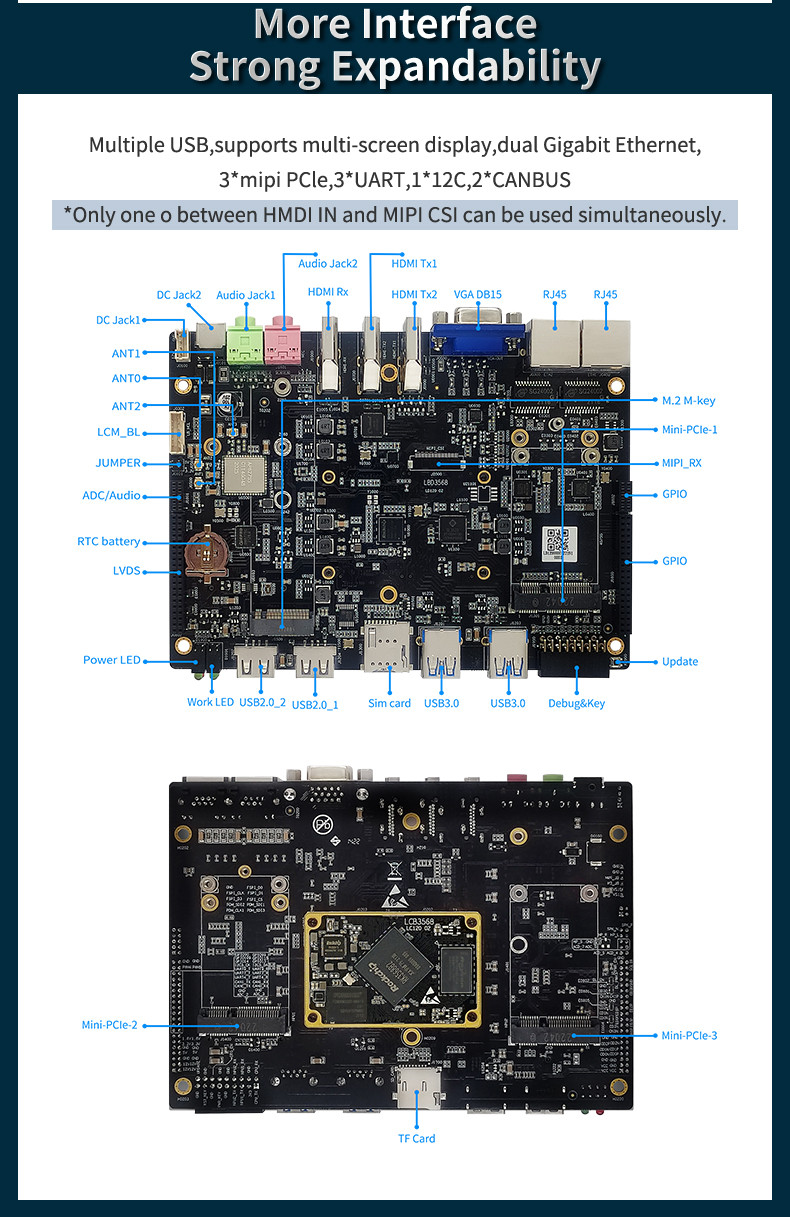

    The LKD3568 features 1 USB 3.0 HOST, 1 USB 3.0 OTG, and 2 USB 2.0 HOST interfaces, which are capable of connecting multiple USB cameras externally. It also has 3 mini-PCIe interfaces that can be expanded to connect 4G/5G modules or NPU computing cards with mini-PCIe interfaces based on RK1808, combining with multiple cameras to form an artificial intelligence vision computing board card that supports up to 6.0 TOPS of computational power. Additionally, the LKD3568 supports dual-band WIFI 6, BT5.0, 2 Gigabit Ethernet, UART, I2C, CANBUS, and other common communication module interfaces. It supports 2 HDMI outputs, 1 VGA output, 1 dual-channel LVDS, and various display interfaces, supporting multi-screen independent display. Optional configurations can include 1 HDMI input or MIPI-CSI camera input.


    The LKD3568 supports Android, buildroot, Debian, and Ubuntu operating systems, offering advantages such as high performance, high reliability, and high scalability, and provides users with open system source code. Users can develop and customize based on this product, and our company provides comprehensive technical support for developers and enterprise users, enabling them to efficiently complete research and development work and significantly shorten the product development and mass production cycle.

    FunctionDescription
    CPU

    RK3568, 22nm process, quad-core 64-bit Cortex-A55, with a maximum clock speed of 2.0GHz.

    GPU

    ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1,

    and has a high-quality 2D graphics engine built-in.

    NPUOffers up to 1 TOPS of computational power; supports hybrid operations of
    INT8/INT16/FP16/BFP16 MAC; compatible with deep-learning frameworks
    such as TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, and Darknet.
    VPU

    Capable of 4K VP9 and 4K H265 video decoding at up to 60fps.

    Capable of 1080P H265/H264 video encoding at up to 100fps.

    Equipped with an 8M ISP with HDR capabilities.

    DDRLPDDR4 RAM, with options for 1GB/2GB/4GB/8GB (Optional).
    eMMC
    eMMC 5.1 storage, with options for 8GB/16GB/32GB/64GB/128GB (Optional).
    PMURK806
    OSAndroid / Ubuntu / Buildroot / Debian
    PowerDC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer
    USB1*Type-A USB3.0 HOST, 1*Type-A USB3.0 OTG,
    2*Type-A USB2.0 HOST
    Display

    Type-A HDMI 2.0 up to 4K@60fps
    Type-A HDMI 1.4 up to 1920*1080@60fps
    VGA up to 1920*1080@30fps
    Duel channel LVDS up to 1080P@60HZ

    Audioφ3.5mm earphone Jack with L/R audio out
    φ3.5mm micphone Jack with Mic in
    Speaker output with 1.5W@8Ω
    HDMI audio out
    Mini-PCIeHDMI Input interface; MIPI-CSI Camera Interface
    M.2M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported
    SDCompatible with SDIO 3.0 protocol, system boot up supported
    SIM cardMicro sim slot for Mini-PCIe 4G LTE module
    RJ-452*10/100/1000 Ethernet
    RTC2Pin GH1.25 connector, RTC power on and off supported
    Others

    3*Uart, 2*CAN BUS, 1*I2C, 6*ADC, 2*PWM, lots of GPIOs

    Power output12V, 5V, 3.3V
    Others4*ADC, 1*I2C(CTP supported), 4*Switch signal Input, 4*Switch signal Output
    DimensionsLength * Width * Height (mm) 160*115*25.7
    Operating Temperature-10 ~ 70℃
    Weight Approximately171.5g (excluding peripherals)
    Neardi RK3568 Linux Development Board LKD3568 High Performance Single Board ComputerNeardi RK3568 Linux Development Board LKD3568 High Performance Single Board Computer

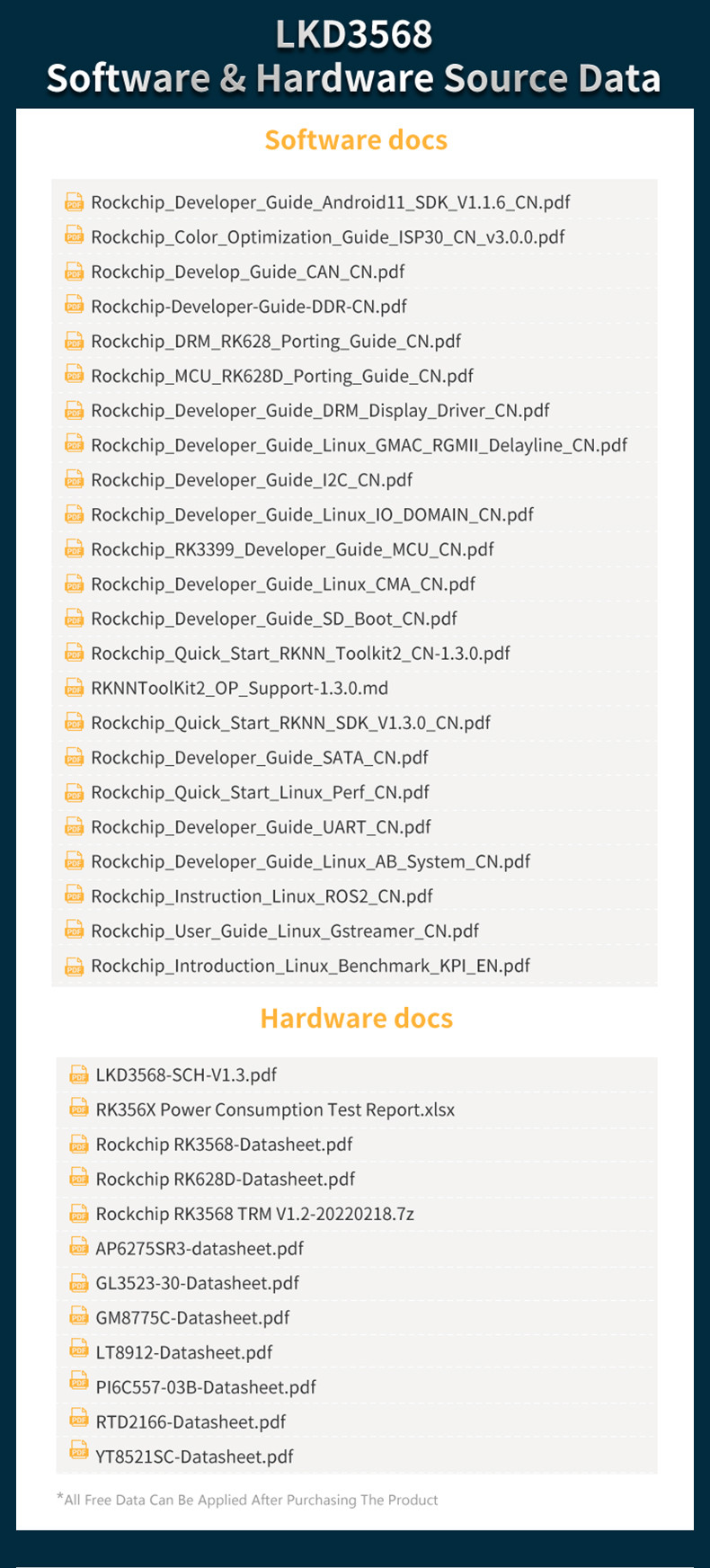

    Developer's Must-Read!
    Welcome to our Resource Center, where you can find various helpful links and information for developers.
    Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
    Company Introduction
    Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.

    After-sale Service Policy

    1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
    2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
    3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
    4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
    5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
    6. Neardi will reject items sent back without our permission.
    7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
    Non-warranty Coverage(Paid Maintenance Service):
    1. Products out of warranty period;
    2. Non-warranty components including CPU, RAM, and Flash chips;
    3. Failure caused by improper operations like PCB short circuit, rupture;
    4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
    5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
    6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
    7. Product failure caused by force majeure.
    8. Other failures caused during delivery.
