    Neardi Rockchip SBC LKD3568J Arm Development Board Linux RK3568

    Ask Lasest Price
    Model Number : LKD3568J
    Brand Name : Neardi
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000/pieces/mon
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Neardi Rockchip SBC LKD3568J Arm Development Board Linux RK3568

    Neardi Rockchip SBC LKD3568J Arm Development Board Linux RK3568 Arm Board


    LKD3568J is a multifunctional industry application board carefully designed based on the Rockchip RK3568 chip platform. It consists of our LCB3568 core module and baseboard. The core module and baseboard are connected by a B2B connector and fixed by 4 M2 screws, which are stable and reliable. The whole board has various functions and rich interfaces and can be widely used in various scenarios. LKD3568J supports Android, Buildroot, Debian, and Ubuntu systems, and has advantages such as high performance, high reliability, and high scalability, and opens system source code to users. Users can carry out secondary development and customization based on this product. Our company provides developers and enterprise users with all-around technical support to enable them to complete research and development work efficiently and greatly shorten the product research and development and mass production cycle.


    Neardi Rockchip SBC LKD3568J Arm Development Board Linux RK3568


    Product Parameters
    FunctionDescription
    SOCRK3568, quad-core Cortex-A55@2.0GHz
    GPUARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D
    NPU1 TOPS, NT8/INT16/FP16/BFP16 MAC hybrid operation supported;
    TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning
    frameworks supported
    VPU4K VP9 and 4K H265 up to 60fps video decoding
    1080P up to 100fps H265/H264 video encoding
    8M ISP with HDR
    DDRLPDDR4, 可选 1GB/2GB/4GB/8GB(Optional)
    eMMCeMMC 5.1, 可选 8GB/16GB/32GB/64GB/128GB (Optional)
    PMURK806
    SystemAndroid / Ubuntu / Buildroot / Debian

    Hardware Interface
    PowerDC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
    USB1*Type-A USB3.0 HOST,
    1*Type-A USB3.0 OTG,
    2*Type-A USB2.0 HOST
    Display outputType-A HDMI 2.0 up to 4K@60fps
    Type-A HDMI 1.4 up to 1920*1080@60fps
    VGA up to 1920*1080@30fps
    Dual channel LVDS up to 1080P@60HZ
    Audioφ3.5mm earphone Jack with L/R audio out
    φ3.5mm microphone Jack with Mic in
    Speaker output with 1.5W@8Ω
    HDMI audio out
    Display inputHDMI Input interface; MIPI-CSI Camera Interface
    Mini-PCIe1*mini PCIe for 2G/3G/4G/5G LTE module,
    2*mini PCIe for AI cards
    M.2M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported
    SD cardCompatible with SDIO 3.0 protocol, system boot up supported
    SIM cardMicro sim slot for Mini-PCIe 4G LTE module
    RJ-452*10/100/1000 Ethernet
    RTC2Pin GH1.25 connector, RTC power on and off supported
    Others3*Uart, 2*CAN BUS, 1*I2C, 6*ADC, 2*PWM, lots of GPIOs
    Power output12V, 5V, 3.3V
    Others4*ADC, 1*I2C(CTP supported), 4*Switch signal Input, 4*Switch Signal Output

    Neardi Rockchip SBC LKD3568J Arm Development Board Linux RK3568

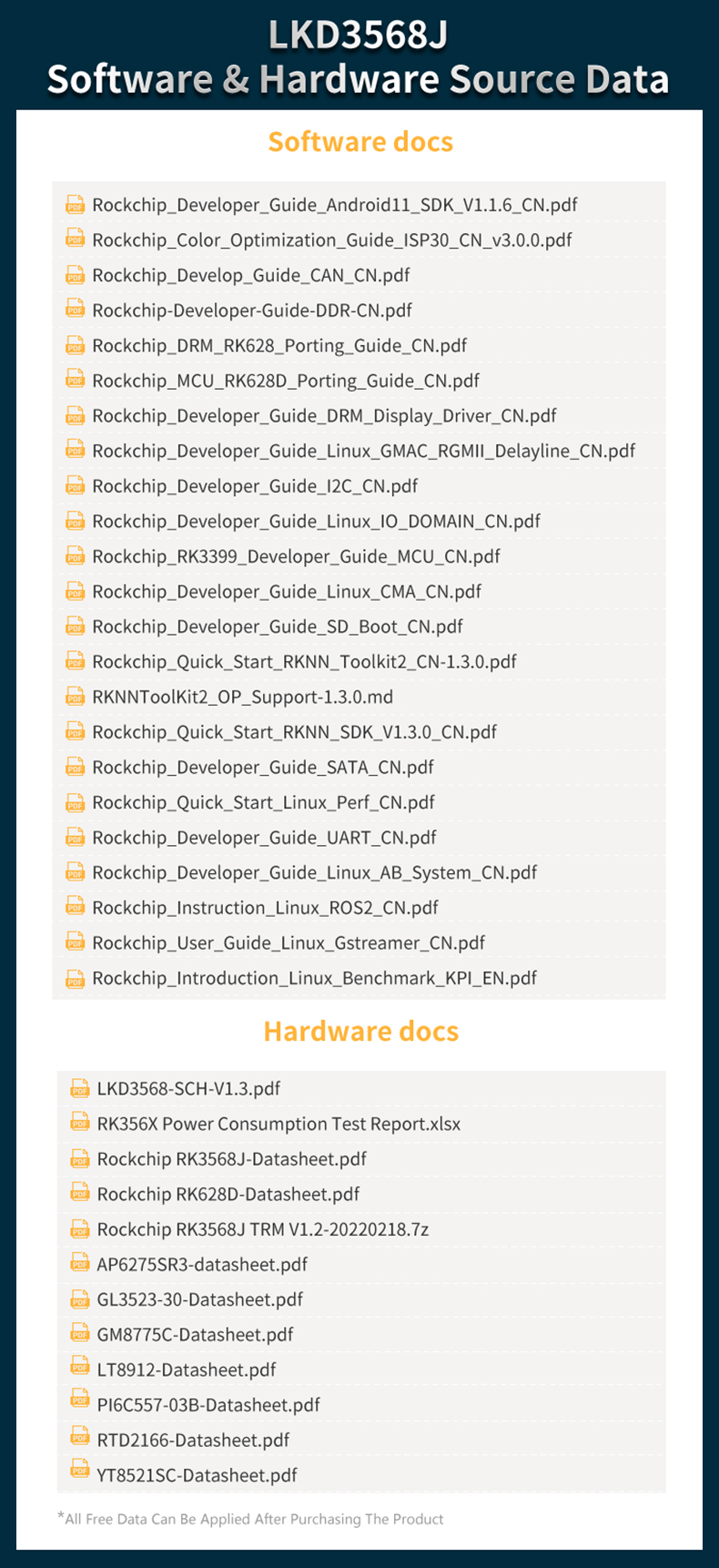

    Developer's Must-Read!
    Welcome to our Resource Center, where you can find various helpful links and information for developers.
    Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
    Company Introduction
    Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.

    After-sale Service Policy

    1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
    2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
    3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
    4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
    5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
    6. Neardi will reject items sent back without our permission.
    7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
    Non-warranty Coverage(Paid Maintenance Service):
    1. Products out of warranty period;
    2. Non-warranty components including CPU, RAM, and Flash chips;
    3. Failure caused by improper operations like PCB short circuit, rupture;
    4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
    5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
    6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
    7. Product failure caused by force majeure.
    8. Other failures caused during delivery.
